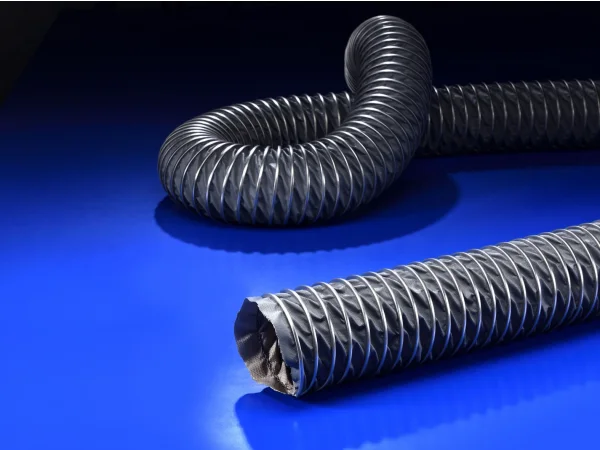

The J 6-6 PTFE FABRIC CLIP HOSE is lightweight, kink-proof and anti-adhesive.
Application
- For the transport of solids such as dust, powder, fibre and chip.
- For the conveyance of gaseous media such as vapour and smoke.
- Suited for the food, pharmaceutical and chemical industry.
Construction
- The hose is made by mechanically clamping the PTFE into the metal band.
Material
- Wall: PTFE coated glass fabric
- Wall thickness: 0.35 mm approx.
- Clamp: Stainless steel
Properties
- Small bending radius
- Strongly clamped into the wall.
- Odorless and tasteless
- Good resistance to high temperature
- Flame retardant according to FM 4910
- Good resistance to acids, alkalis and chemicals
- Good resistance to UV and Ozone
Temperature Range
- -40 °C approx. to +260 °C approx.
Specification:
- ø 76 to ø 254 mm
